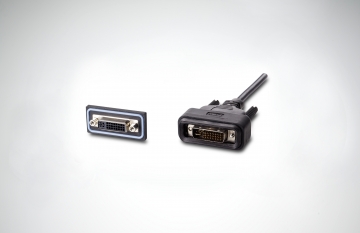

Waterproof DVI

防水DVIコネクタ

製品の通し番号
Waterproof DVI






No. Specifications Standard Value
Identifications DVI-D Single Link(DDS)
DVI-D Dual Link(DDD)
DVI-I Single Link(DIS)
DVI-I Dual LINK(DID)
Description Penal Mount, Molded With Cable and Field Installable
Current Rating / Pin Arrangements DVI-D Single Link(DDS):19 Contacts
DVI-D Dual Link(DDD):
25 Contacts
DVI-I Single Link(DIS):23 Contacts
DVI-I Dual LINK(DID):29 Contacts
Material Contacts: Copper Alloy, Gold Plated
Connector Body: Nylon +GF , UL Recognized
Temperature Range Cable: -20℃~ + 80
Connector Body: -40℃~ + 105
Waterproof Rating IP66,IP67,IP68(Per IEC 60529)
Contact Resistance 20mΩ
Insulation Resistance 1000mΩ at DC 500V
